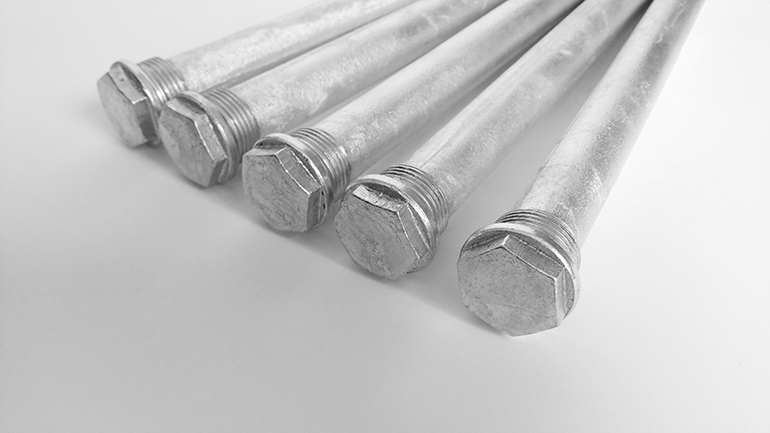

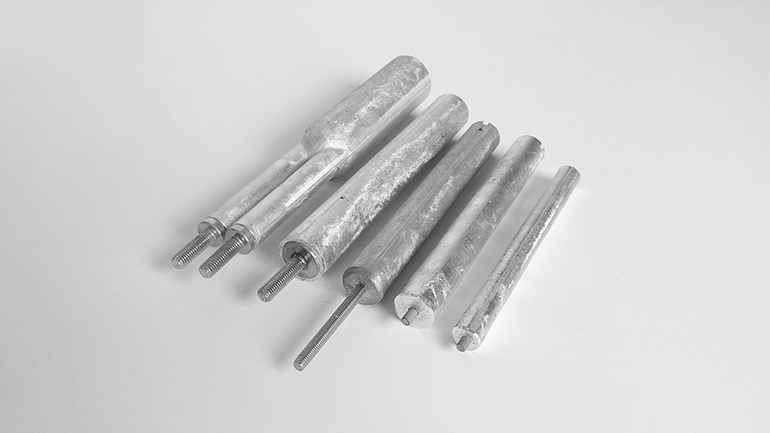

浇铸热水器阳极Casting water heater anode
公司可以为客户提供质量可靠的镁浇铸阳极棒，所有产品严格按照欧洲EN10204-DIN 50049标准进行电位及失重检测，充分满足市场对热水器防腐的需求。所用原材料均为高质量的AZ63镁合金。
We can provide customers with reliable magnesiumcast anode, all products are qualified in accordance with the European EN10204-DIN 50049standard for potential and weightlessnesstesting, fully meet the market demand for water heater corrosion. The rawmaterials are high-quality AZ63 magnesium alloys.
化学成分Chemical composition
AZ63 | Mg | Al | Zn | Mn | Si | Fe | Cu | Ni | Others |
最小 Minimum | Balance | 5.0 | 2.0 | 0.2 | - | - | - | - | - |
最大 Maximum | Balance | 7.0 | 4.0 | 1.0 | 0.3 | 0.02 | 0.05 | 0.002 | 0.05 |
产品规格Specification
阳极直径φ( mm) Diameter | 阳极长度B( mm) Anode length B | A | M4 | M5 | M6 | M8 |
L. min. | L. max. |
14 | 100 | 280 | 6~10 | ◆ |
|
|
|
16 | 100 | 530 | 6~10 | ◆ |
| ◆ |
|
18 | 100 | 300 | 10 |
|
| ◆ |
|
21.3 | 60 | 230 | 10~20 |
| ◆ | ◆ | ◆ |
22 | 60 | 570 | 10~30 |
| ◆ | ◆ | ◆ |
26 | 60 | 670 | 10~30 |
| ◆ | ◆ | ◆ |
28 | 100 | 240 | 10~30 |
|
| ◆ |
|
32 | 60 | 570 | 10~30 |
|
| ◆ | ◆ |
33 | 60 | 1380 | 10~30 |
|
|
| ◆ |
说明: 1 长度A为阳极外露铁芯长度，长度B为阳极含镁长度，M4、M5、M6和M8为螺丝规格，◆代表可选用的标准螺丝；
2、以上阳极镀锌螺丝外露长度A仅供参考，也可根据客户需求进行生产；
