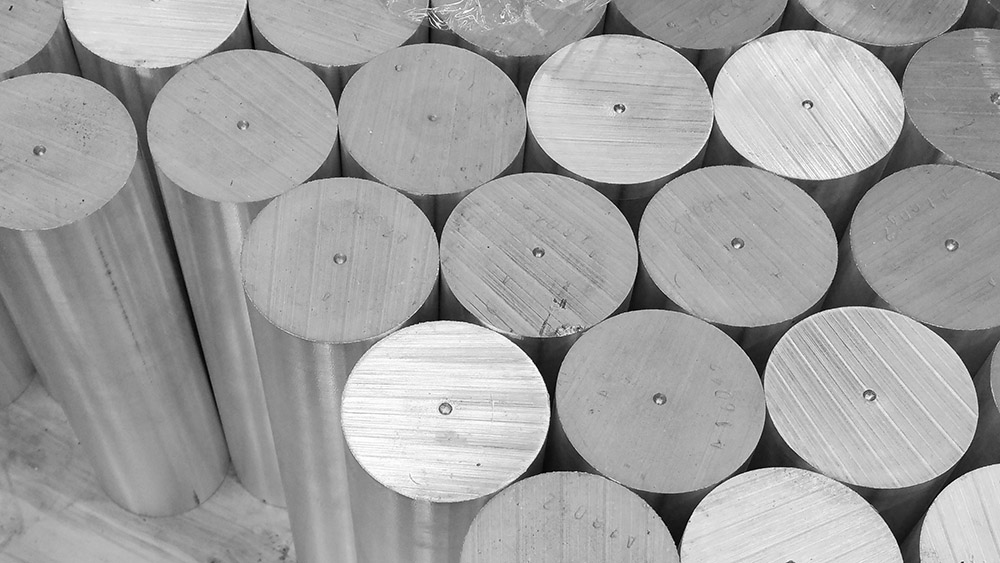

镁合金半连续拉铸棒材
Magnesium AlloySemi-Continuous CastBillets
常规产品材质：AZ31B, AZ31D, AZ61A, AZ80A, Mg-Mn等。
Ordinaryraw material: AZ31B, AZ31D, AZ61A,AZ80A, Mg-Mn etc.
化学成份Chemicalcomposition
ASTM B 93/B 93M-00 | AZ31B | AZ31D | AZ61A | AZ80A | Mg-Mn |
Al % | 2.50-3.50 | 2.50-3.50 | 5.80-7.20 | 7.80-9.20 | 0.01max |
Mn % | 0.20-1.00 | 0.20-1.00 | 0.15-0.50 | 0.12-0.50 | 0.50-1.30 |
Zn% | 0.60-1.40 | 0.60-1.40 | 0.40-1.50 | 0.20-0.80 | — |
Fe % | 0.003max | 0.002max | 0.005max | 0.005max | 0.01max |
Cu % | 0.01max | 0.01max | 0.05max | 0.05max | 0.01max |
Si % | 0.08max | 0.05max | 0.10max | 0.10max | 0.05max |
Ni% | 0.001max | 0.001max | 0.005max | 0.005max | 0.001max |
Others each % | 0.05max | 0.01max | — | — | 0.05max |
Others total % | 0.30max | ------ | 0.30max | 0.30max | 0.30max |
Mg % | BALANCE | BALANCE | BALANCE | BALANCE | BALANCE |
注: 通过元素含量控制, 可提供多种特殊规格与要求的产品. 如纯镁，AZ21，ZK80等。 Note: Via element content control, a variety of billets with special specifications and requirements can be provided. Such aspure magnesium, AZ21, ZK80,etc. |
常规产品规格
直径/mm | 92 | 110 | 125 | 153 | 165 | 188 | 192 | 195 | 212 | 290 |
长度 | 可根据客户的不同要求确定棒材产品的长度 |
注：可根据实际需求设计模具及结晶器以生产多种不同直径的产品 |
Regular productspecifications
Diameter/mm | 92 | 110 | 125 | 153 | 165 | 188 | 192 | 195 | 212 | 290 |
Length | The length of the billetproduct can be determined according to the different requirements of the customer |
Note: Molds and crystallizer can be designed according to actual needs to produce a variety of products with different diameters |
